Since its establishment, Movit Malles Pvt. Ltd. has developed a comprehensive range of automated logistics systems. Our offerings include a variety of hardware equipment, such as diverse racking systems, pallet and miniload stacker cranes, four and multi-directional shuttle car systems, hoists, automated palletizing and depalletizing equipment, conveying equipment, RGV shuttles, and AGVs/AMRs. These are integrated with intelligent control systems and specialized software solutions like system simulation tools, Warehouse Management Systems (WMS), and Warehouse Control Systems (WCS).
Intelligent Logistics Business

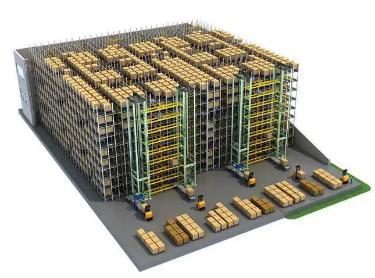

Intergrated Stereoscopic Warehouse

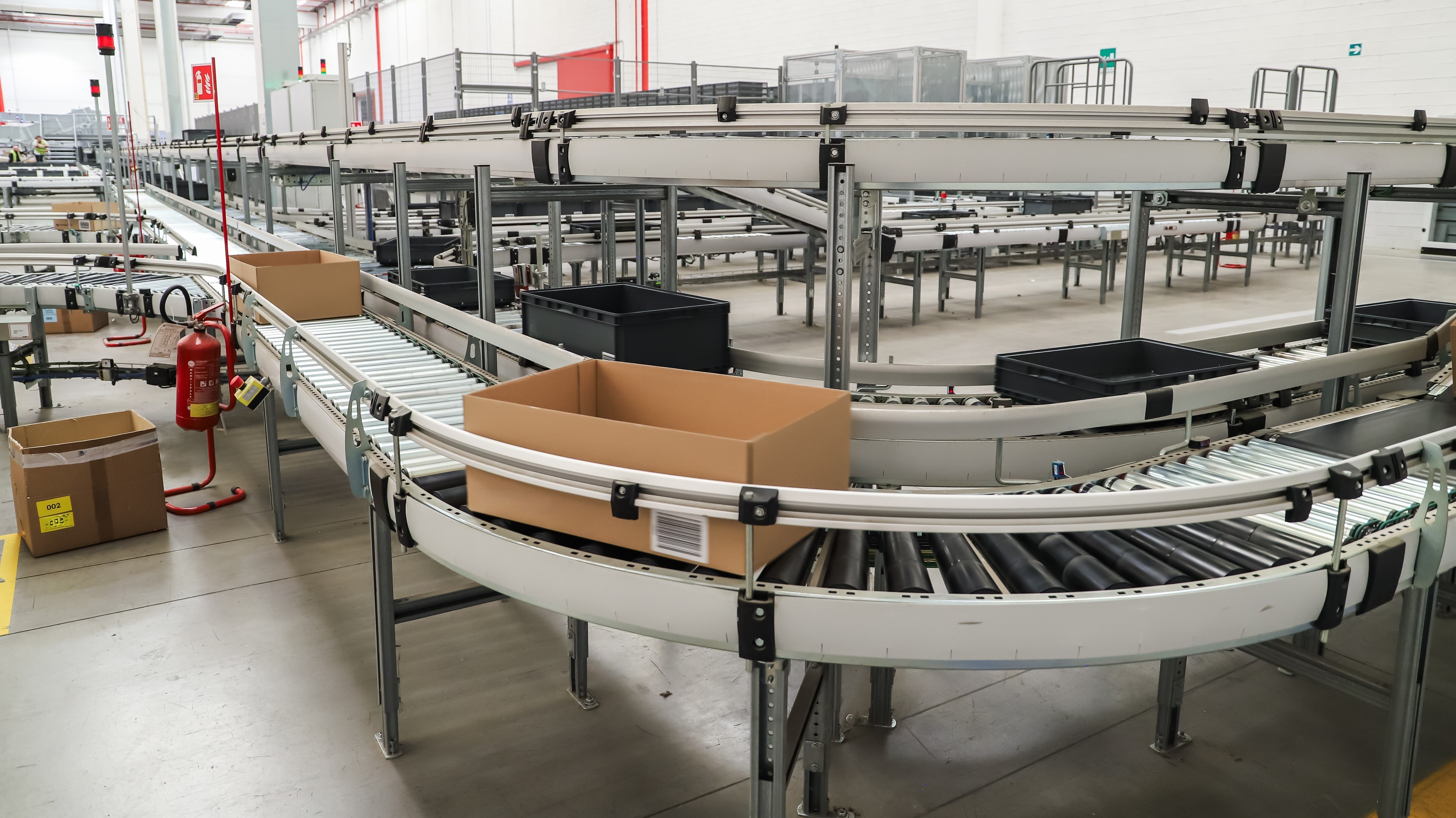

Conveying System

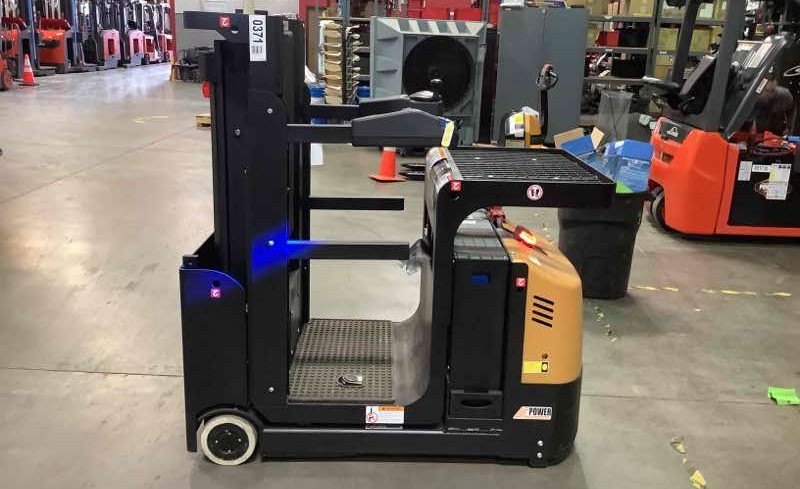

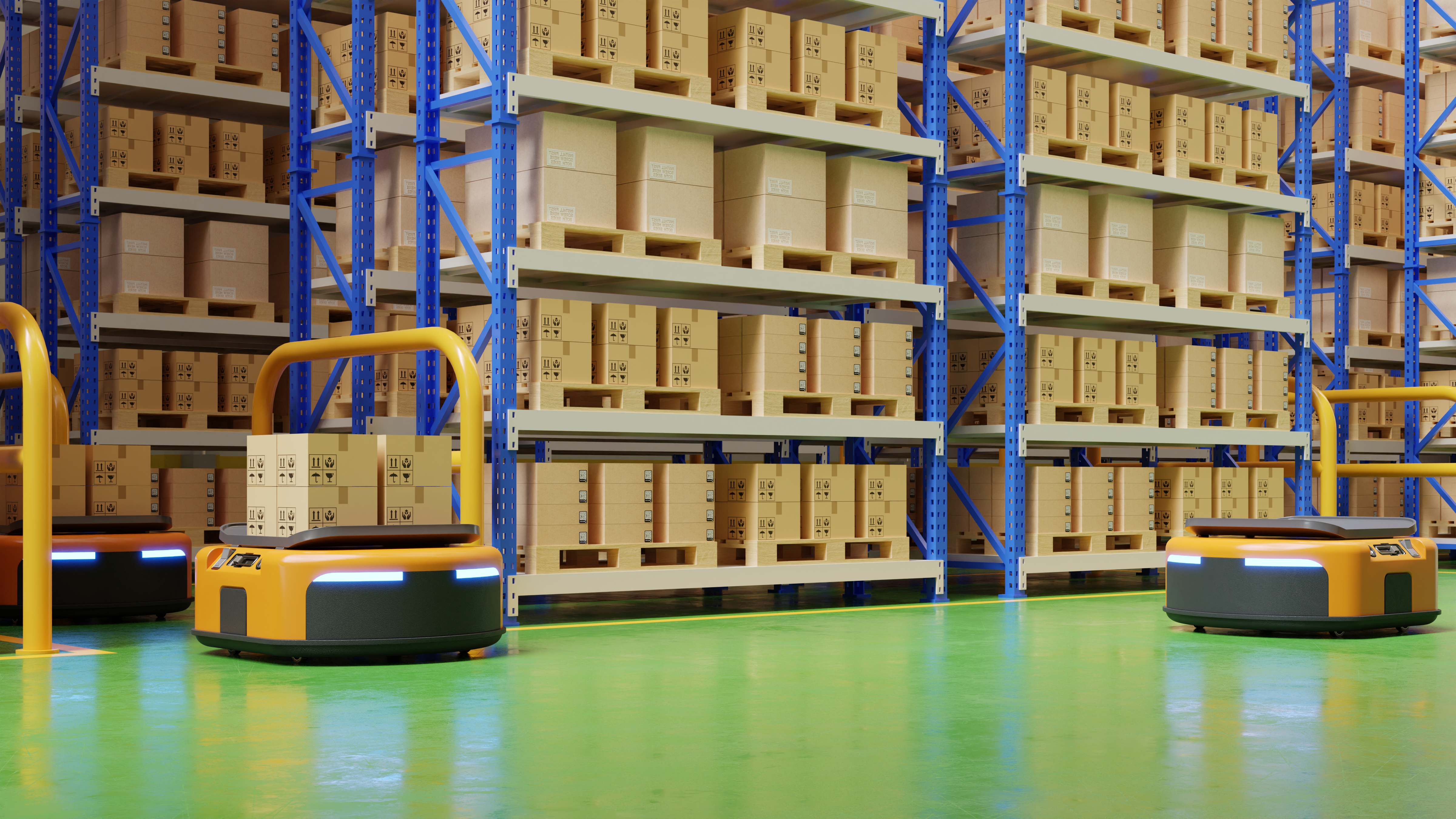

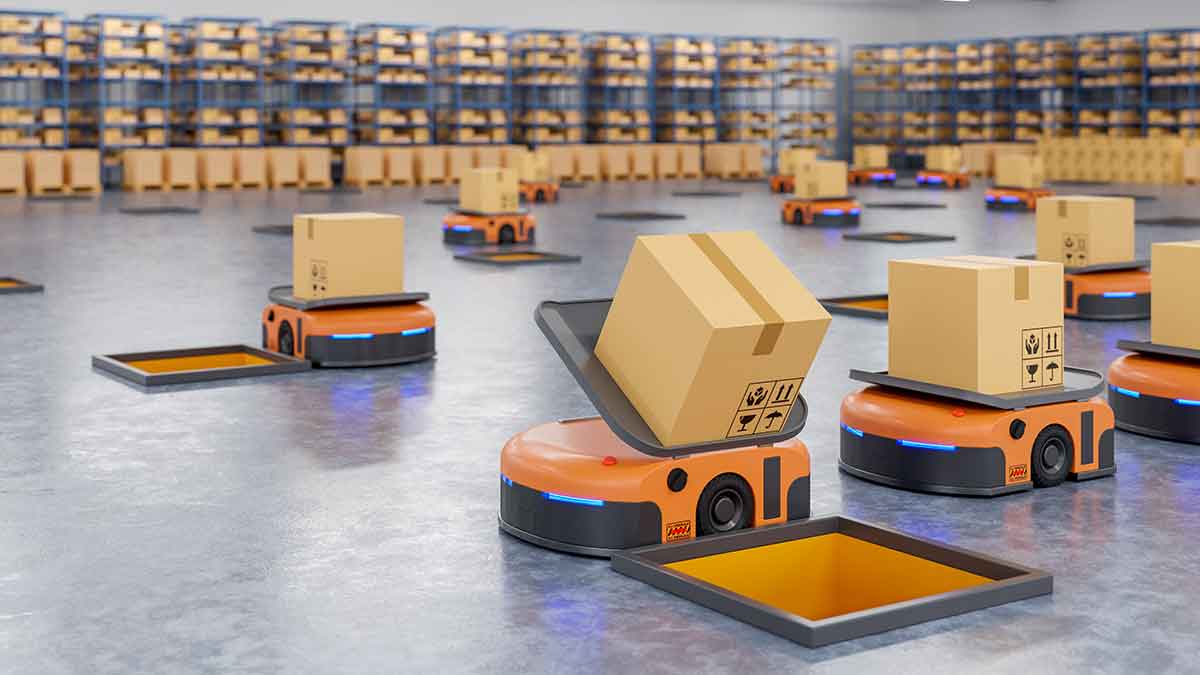

Integrated AGV System
Business Model

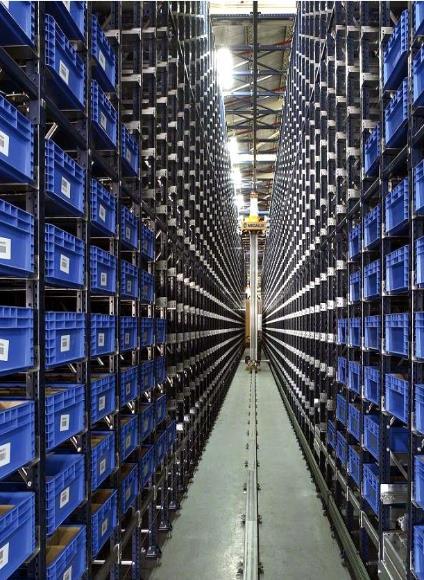

Intelligent Logistics Product Intro - Racking

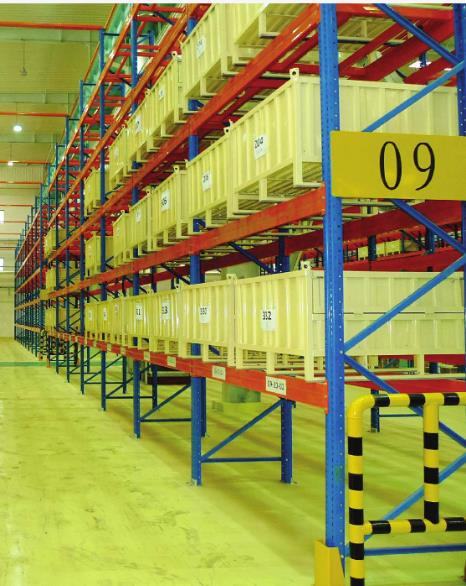

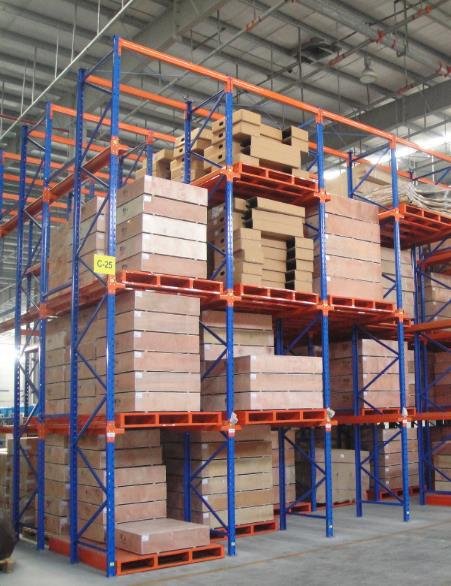

Movit Malles manufactures high-performance storage rack systems, including beam racking, cantilever racking, and four-way shuttle car racking. These systems form the fundamental infrastructure for automated storage and retrieval systems (AS/RS) warehouses.
Designed with exceptional precision in manufacturing tolerances and superior structural rigidity, our racks handle a wide range of unit loads with ease. They are ideal for high-volume, diverse storage of full pallets and full cases, accommodating palletized loads (steel/plastic), wire mesh containers, custom fixture trolleys, standard warehouse plastic containers, and cartons.

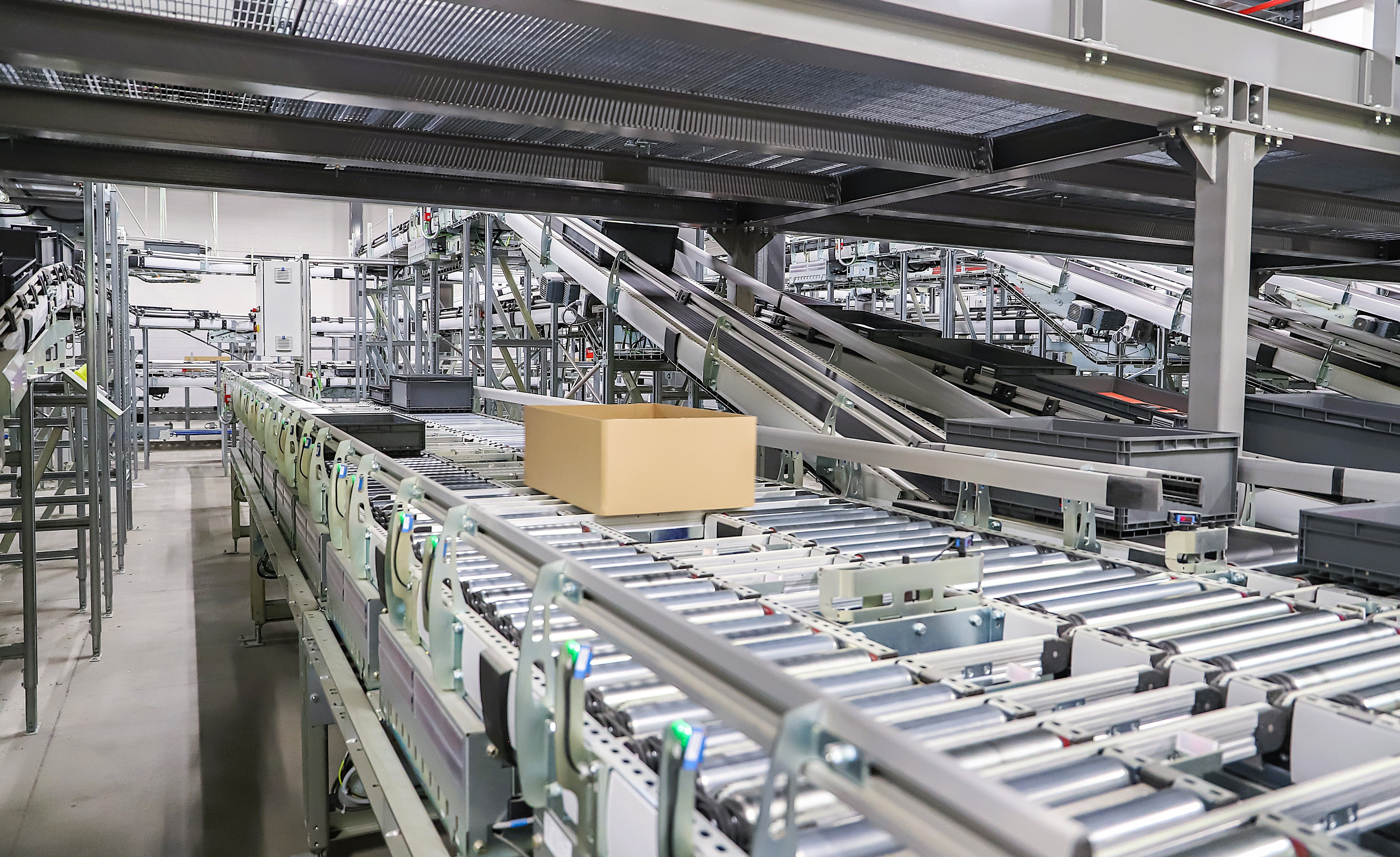

Intelligent Logistics Product Intro - Conveyor
Light Load Friction Belt Roller Conveyor
- Speed: 0~30 m/min (Customizable)
- Rated Load: 100 kg (Customizable)
- Noise: ＜70db
- Roller Pitch: Standard pitch 75/100/150 (Customizable)
- Electric Drive (Customizable)
Heavy Load Friction Belt Roller Conveyor
- Speed: 0~40 m/min (Customizable)
- Rated Load: 100 kg (Customizable)
- Noise: ＜70db
- Roller Pitch: Standard pitch 75/100/150 (Customizable)
- Electric Drive (Customizable)
Pallet Chain Conveyor
- Speed: 0~30 m/min (Customizable)
- Rated Load: 100 kg (Customizable)
- Noise: ＜70db
- Roller Pitch: Standard pitch 75/100/150 (Customizable)
- Electric Drive (Customizable)

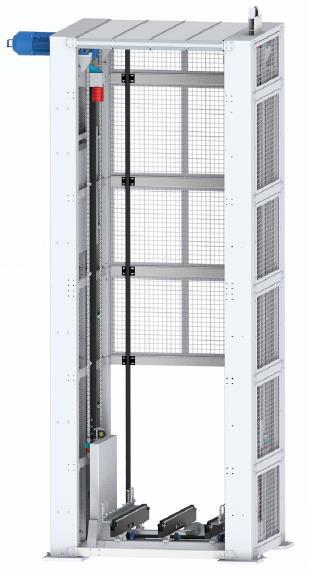

Intelligent Logistics Product Intro - Lift
| Name | Specifications | Remarks |
|---|---|---|
| Rated Load | ≤1200kg | |
| Motor | Nord, SEW | |
| Motor Power | 7.5KW | Reference value, subject to actual design |
| Max Speed Unloaded/Loaded | 0.4~0.6m/s | Reference value, subject to actual design |
| Electro-Optical System | Long lifespan, stable signal, low failure rate | Pepperl+Fuchs, SICK etc |
| PLC | Stable and fast computing speed | Siemens |
| Control Method | Online automatic / Standalone manual | |
| Communication Protocol | Industrial Ethernet | Siemens or equivalent brand |
| Operating Temperature Range | -20°C~+50°C | |
| Settlement Compensation | Included in lifting system | |
| Drive System | Chain-type (low deformation, high precision, long lifespan) |

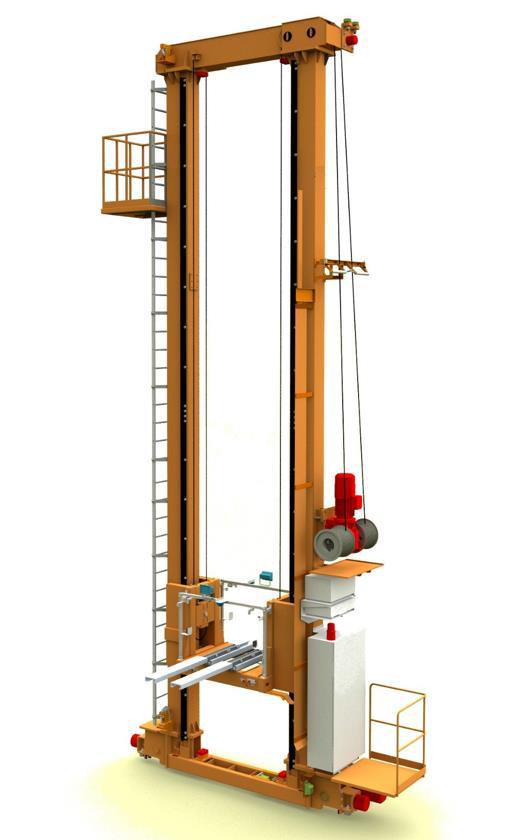

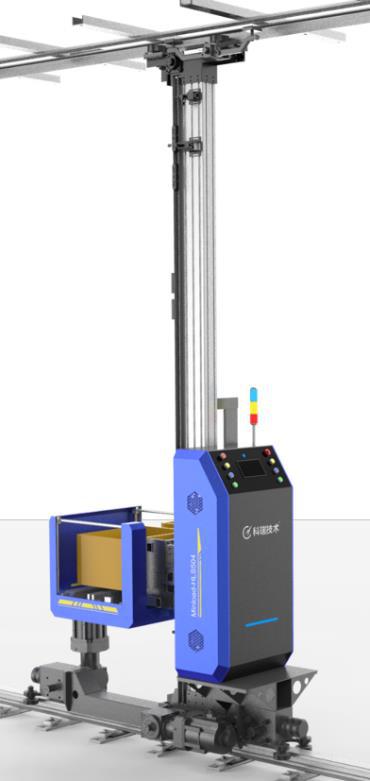

Intelligent Logistics Product Intro - Stacker Crane
| Name | Specifications |
|---|---|
| Operating Voltage | AC 380V |
| Operating Temperature | -5°C~40°C |
| Load Weight | >1000KG |
| Equipment Height | ≤20m (Customizable) |
| Travel Speed | 0~180m/min |
| Lifting Speed | 0~40m/min |
| Positioning Accuracy | ±3mm |
| Travel Acceleration | 0~0.6m/s² |
| Lifting Acceleration | 0~0.6m/s² |
| Positioning Method | Absolute Encoder with Laser Ranging |
| Fork Structure Type | Pin-type |
| Pick and Place Stroke | Single/Double Deep |
| Pick and Place Speed | 0~60m/min |
| Lifting Method | Wire Rope/Chain |
| Column Structure, Material | Double Column, Steel |
| Name | Specifications |
|---|---|
| Operating Voltage | AC 380V |
| Operating Temperature | -5°C~40°C |
| Load Weight | >1000KG |
| Equipment Height | ≤20m (Customizable) |
| Travel Speed | 0~180m/min |
| Lifting Speed | 0~40m/min |
| Positioning Accuracy | ±3mm |
| Travel Acceleration | 0~0.6m/s² |
| Lifting Acceleration | 0~0.6m/s² |
| Positioning Method | Absolute Encoder with Laser Ranging |
| Fork Structure Type | Pin-type |
| Pick and Place Stroke | Single/Double Deep |
| Pick and Place Speed | 0~60m/min |
| Lifting Method | Wire Rope/Chain |
| Column Structure, Material | Double Column, Steel |

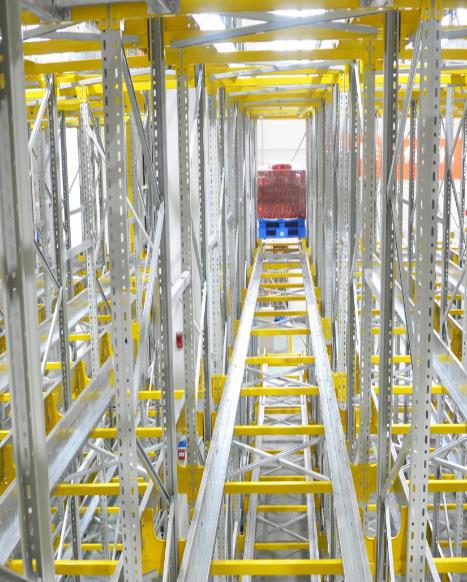

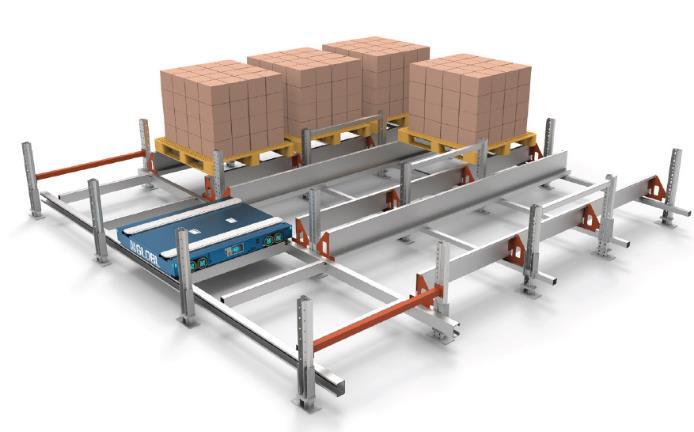

Intelligent Logistics Product Intro — Four-Way Shuttle Car
The four-way shuttle car can switch aisles and move bidirectionally across multiple aisles on the same level, providing flexible storage and retrieval. A high-speed hoist facilitates vertical transfer between different levels.
To meet the throughput demands of the automated warehouse, cross-aisle four-way shuttles are deployed. A dedicated shuttle hoist is installed at one end of the warehouse, enabling the vertical transfer of shuttles across different rack levels to perform picking and placing operations.

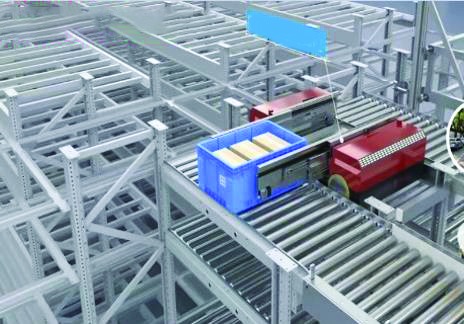

Intelligent Logistics Product Intro - Multi Shuttle Car

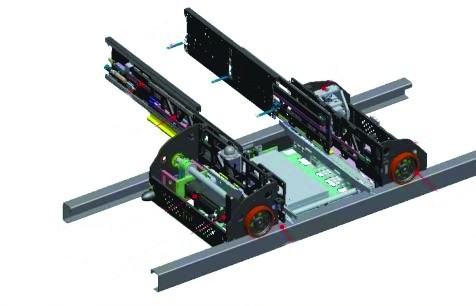

The straight-line shuttle car is a core device designed for high-density storage warehouses, offering a fast and flexible solution for handling and storing goods. It features exceptional flexibility and efficiency, supporting both single and double-deep storage while offering broad compatibility with various cargo sizes.
| Name | Layout | Product Specifications | Suitable for (L*W*H: mm) | Product Weight | Overall Dimensions (L*W*H mm) | Aisle Width (Outer Rail-to-Rail Distance: mm) |
| Straight-line shuttle A - type | Double deep | Rigid Container | Max: 600*400*600 Min: 200*200*100 |
≤50Kg | 1050*970*325 | 1010 |
| Carton | Max: 600*400*600 Min: 200*200*100 |
|||||
| Straight-line shuttle B - type | Single deep | Rigid Container | Max: 600*400*600 Min: 200*200*100 |
≤50Kg | 1050*720*325 | 750 |
| Carton | Max: 600*400*600 Min: 200*200*100 |
